Product Description

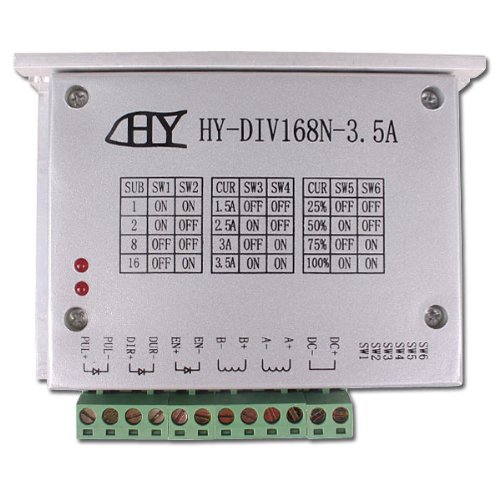

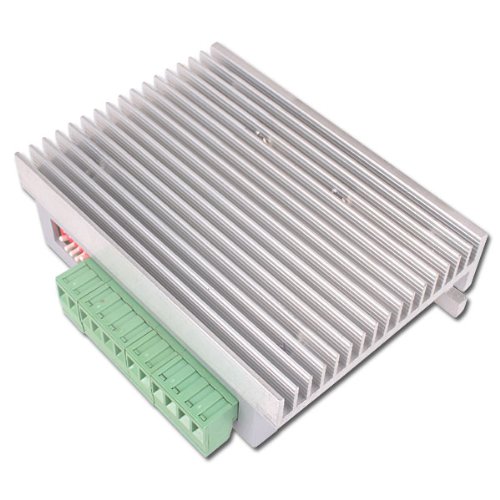

HY-DIV168N-3.5A subdivision-type two-phase hybrid stepping motor drive using DC 12 ~ 36V power supply, suitable for drive
Two-phase hybrid stepping motor dynamic voltage 12 to 36V, the current is less than 3.5A outer diameter of 35 to 86 mm. This drive using the drive’s current loop subdivision control, the motor torque ripple is very small, low-speed running is very smooth, almost no vibration and noise. High-speed torque is much higher than other two-phase drive, high positioning accuracy. Widely used in the engraving machine, CNC machine tools, packaging machinery and other high resolution requirements on the device.
Electrical parameters:
Input voltage DC 12 ~ 36V input
The input current of 1 to 4 amps, select the drive a stepper motor.
Output current of 0.5A ~ 3.5A
Temperature Operating Temperature -10 to 45 ℃; Storage temperature -40 ℃ to 70 ℃
Humidity not condensing, not drops
Gas prohibit combustible gas and conductive dust
Weight 200 grams

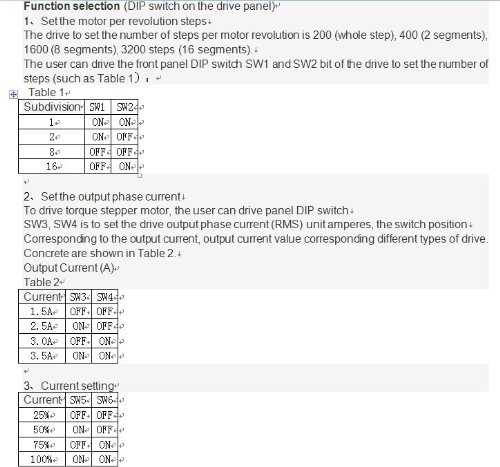

Function selection (DIP switch on the drive panel)
1、Set the motor per revolution steps
The drive to set the number of steps per motor revolution is 200 (whole step), 400 (2 segments), 1600 (8 segments), 3200 steps (16 segments).
The user can drive the front panel DIP switch SW1 and SW2 bit of the drive to set the number of steps (such as Table 1）：
Table 1
Subdivision SW1 SW2
1 ON ON
2 ON OFF
8 OFF OFF
16 OFF ON
Package
1x motor drive
Average current control, two-phase sinusoidal current drive output

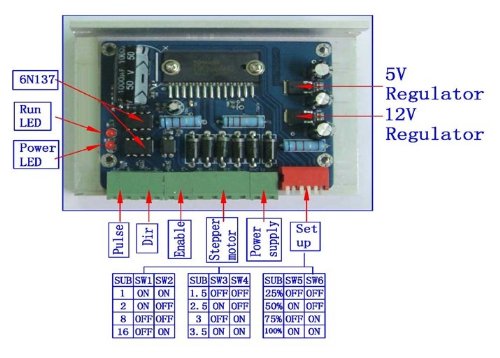

DC 12 ~ 36V power supply, the internal integration of 12V and 5V regulator
Optically isolated signal input / output; overvoltage, under-voltage, over-current, and white short-circuit protection
Four file segmentation and automatic half-streaming capabilities up to 16 segments
File output phase current settings; high starting speed; high-speed torque
