Product Description
Specifications:
Technical Index
General Index
Receivable frequency L1, 1575.42MHz
C/A code 1.023MHz
Channel 65
Sensibility
Search -151dBm
Track -160dBm
Precision
Velocity 0.1m/s
Location time
Hot startup 1s, average
Warm startup 35s, average
Cold startup 40s, average
Dynamic condition
Altitude Max 10 km
Horizontal speed Max 515m/s
Acceleration Max 4g
GPS protocol
NMEA-0183 ASIC protocol
Default NMEA GGA, GSA, GSV and RMC, (VTG, GLL and RMS optional)
9600bps baud rate, 8 data bits, 1 stop bit, no check bit
Bluetooth index
Bluetooth code V2.0+EDR
Emission power Class 2 (4dBm max)
Receiving sensibility -80dBm
Communication distance 10m typical (free space)
Profile Communication Profile Serial Port Profile (SPP)
Power consumption
Working current about 60mA average
Working voltage 3.7v-4.2V
Chargeable voltage 5.5V
Battery
Recharge time 2.5hrs typical
Working time about 18.5hrs, track after the charging is full
Environment
Working temperature -40c to +85c
Storage temperature -40c to +150c

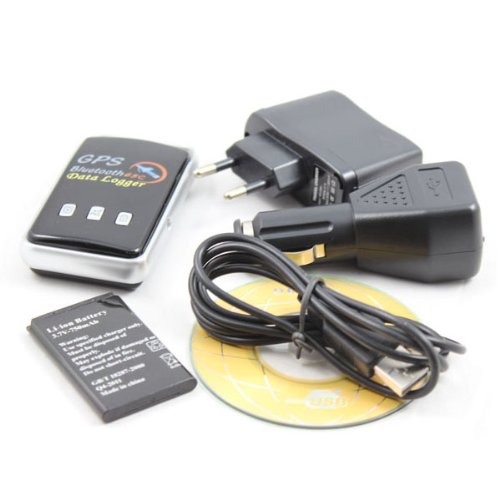

Package Include:

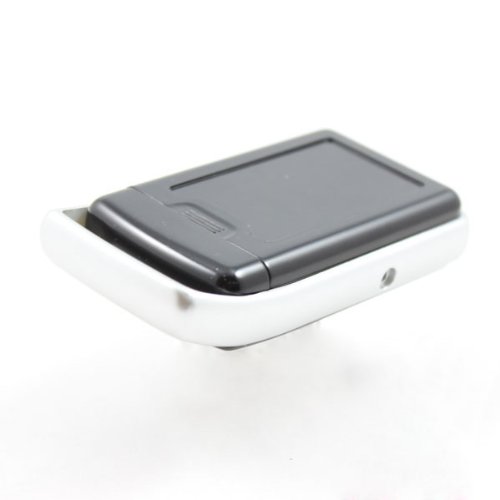

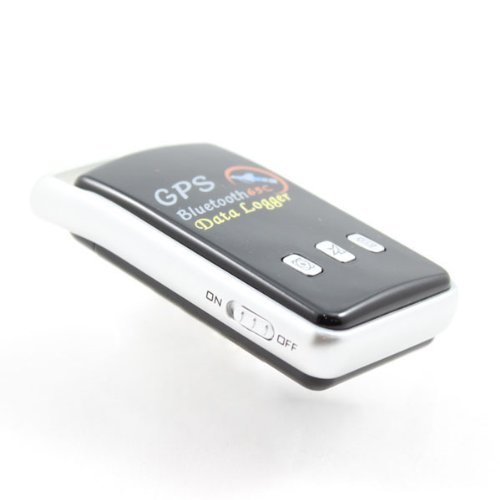

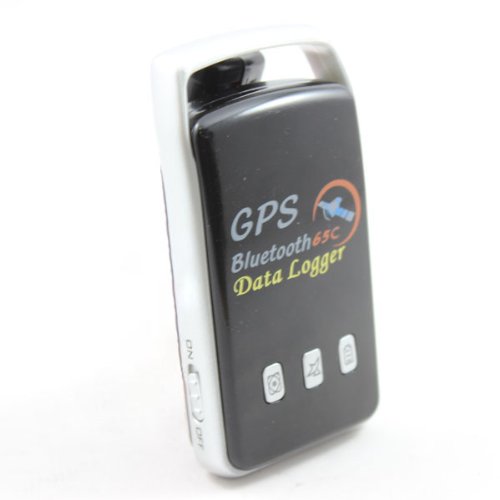

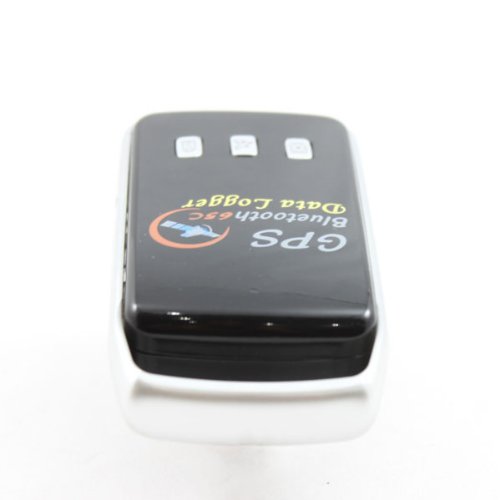

1 x GPS Track Tracker and Data Logger (Wireless)
1 x Travel Charger (110-240V, 50/60Hz)
1 x USB Charger Cable
1 x Car Charger
1 x Li-ion Battery
1 x Mini-CD with GPS Logger software
Feature: 1. Very low electricity cost and work up to maximum 18.5 hours 2. 3 LED indicate statues of Bluetooth, GPS and recharging 3. Support the baud rate 9600bps in NMEA-0183 standard 4. Can store the equivalent of 300 hours history GPS track information. 5. Small-size, humanized design, portable, cute appearance
6. High-sense, good-performance GPS chip, receiving 65 satellites simultaneously
7. Accord with Bluetooth 2.0 Specification CLASS 2
8. Support Bluetooth serial communication Profile (SPP Profile)
9. Compatible with li-battery and charger of Nokia mobile (e.g.N70)
